Sealing Boots

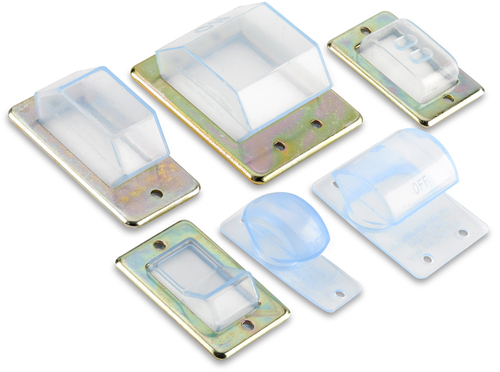

Emcomp offers a complete range of sealing boots for CBI circuit breakers. By complementing the installation with patented silicone rubber boots, you achieve a very robust design with an IP rating of up to IP66/IP68. Typical applications: • Marine & Offshore • Oil & Gas • Military • Medicine • Other applications where it is vital to protect CBI circuit breakers from environmental impact

Want to know more about this product, contact me

Nicklas Erixon

nicklas.erixon@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

Using sealing boots enables the application to withstand external impacts, for example:

  • Dust and dirt
  • Salt water
  • Acids
  • Corrosion
  • Oil
  • UV radiation

The housing is UL approved as well as approved for Military use and is designed for a temperature range from -70oC to +200oC. Product life exceeds 25 years.

Part Number

Type of frame

Poles

Handle

EMC400-1000

B-frame

1

Baton Handle 1/2"

EMC400-1001

B-frame

1

Baton Handle M12

EMC400-1002

B-frame

1

Baton (half boot)1/2"

EMC400-1003

B-frame

1

Baton (half boot) M12

EMC400-1004

B-frame

1

Push-to-reset 3/8"

EMC400-1005

B-frame

1

Push-to-reset 3/8"

EMC400-1006

B-frame

1

Rocker handle

EMC400-1007

B-frame

2

Rocker handle

EMC400-1010

C-frame

1

Toggle

EMC400-1011

C-frame

2

Toggle

EMC400-1012

C-frame

3

Toggle

EMC400-1013

C-frame

1

Toggle

EMC400-1014

C-frame

2

Toggle

EMC400-1015

C-frame

3

Toggle

EMC400-1017

C-frame

1

Toggle

EMC400-1018

C-frame

2

Toggle

EMC400-1019

C-frame

3

Toggle

EMC400-1021

DD-frame

1

Toggle

EMC400-1022

DD-frame

1

Toggle

EMC400-1023

DD-frame

2

Toggle

EMC400-1024

DD-frame

2

Toggle

EMC400-1025

DD-frame

3

Toggle

EMC400-1026

DD-frame

3

Toggle

EMC400-1027

DD-frame

4

Toggle

EMC400-1008

C & DD-frame

1

Rocker handle

EMC400-1009

C & DD-frame

1

Rocker handle
