Insulated busbars

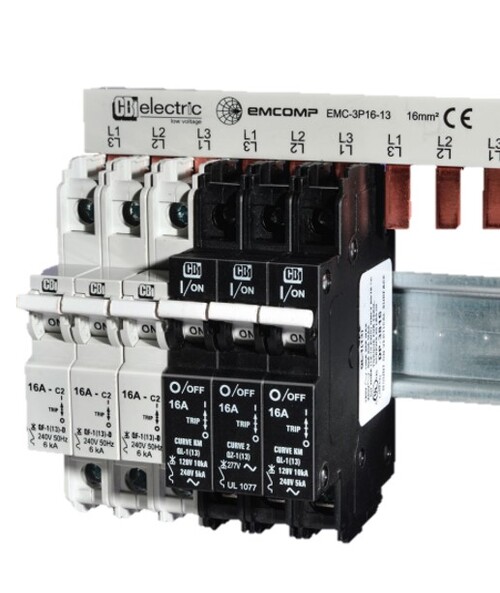

Emcomp’s insulated busbars are especially designed for usage together with CBI Q-range MCBs. Due to the smaller modular width of the Q-range (13 mm) we of course also need to support with busbar systems with the same pitch. The busbars are available in various configurations for 1-3 phases, with or without auxiliary switches. Emcomp’s Busbars for Q-range are available in both straight and 90degree angled versions, with pin as well as fork connection. Usage of Emcomp’s Busbars saves time during assembly as well as gives more even distribution of the current which increase safety as the risk for imbalanced loads in the system decreases.

Want to know more about this product, contact me

Mårten Klingström

marten.klingstrom@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

Emcomp’s insulated busbars are available both on meter length where the customer can cut and add end caps themselves or as ready made with the desired length, complete with insulated end caps.



The fork style busbar is particularly of interest in many case since that allows for easy termination of feeding cable. The busbar is fitted under the screw head on the MCBs and the feeding cable in the box terminal. Then the busbar feeds the rest of the MCBs connected.



For more information, see datasheet under "datasheet and files".

For partnumbers, see "product variants".

Part Number

Module width

1,2,3 phase

Connection

Aux contact

EMC-1F16-13

13mm

1

fork

without

EMC-1F16-13A

13mm

1

fork

place for

EMC-2F16-13

13mm

2

fork

without

EMC-2F16-13A

13mm

2

fork

place for

EMC-2F16-26A

13mm

2

fork

place for

EMC-3F16-13

13mm

3

fork

without

EMC-3F16-39A

13mm

3

fork

place for

EMC-3F16-13A

13mm

3

fork

place for

EMC-1P16-13

13mm

1

pin

without

EMC-1P16-13A

13mm

1

pin

place for

EMC-2P16-13

13mm

2

pin

without

EMC-2P16-13A

13mm

2

pin

place for

EMC-2P16-26A

13mm

2

pin

place for

EMC-3P16-13

13mm

3

pin

without

EMC-3P16-39A

13mm

3

pin

place for

EMC-3P16-13A

13mm

3

pin

place for
