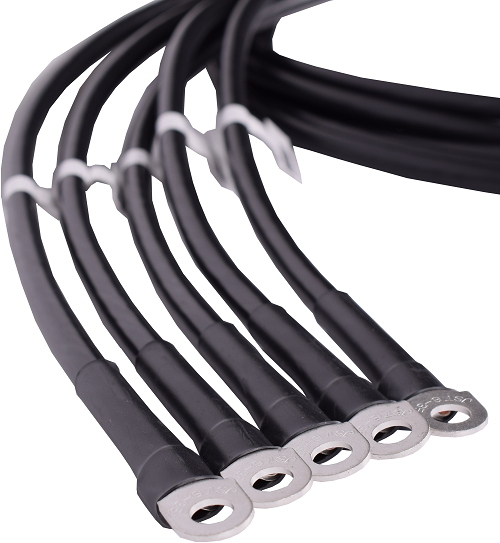

Power cables

Many of our circuit breakers are used as battery circuit breakers. We have solutions for up to 1500A DC. In order to connect these we also offer different kind of power cables. We offer customized designs as well as a standard range for best possible availability and cost. Our standard range of power cables is based on the “AMOSOFT” cable. That is a highly flexible, halogen free, cable approved for temperature s between –40 and +90 degrees C.  The standard range consist of different length from 1,5 up to 3 m in blue and black color.

Want to know more about this product, contact me

Mårten Klingström

marten.klingstrom@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

The standard range comes in two series: 50 mm² with KRF 50-8 cable lug (EPC 212505 range) and 70 mm² with KRF 70-8 cable lug (EPC 212505 range).



You can read more about AMOSOFT here ...



Find part numbers under "product variants".

For more information, see drawings under "datasheets and files".

Part Number

Length (mm)

Color

Cable lug

Cross section (mm²)

EPC212505-1

1500

Black

KRF50-8

50

EPC212505-2

1500

Blue

KRF50-8

50

EPC212505-3

2000

Black

KRF50-8

50

EPC212505-4

2000

Blue

KRF50-8

50

EPC212505-5

2500

Black

KRF50-8

50

EPC212505-6

2500

Blue

KRF50-8

50

EPC212505-7

3000

Black

KRF50-8

50

EPC212505-8

3000

Blue

KRF50-8

50

EPC212705-1

1500

Black

KRF 70-8

70

EPC212705-2

1500

Blue

KRF 70-8

70

EPC212705-3

2000

Black

KRF 70-8

70

EPC212705-4

2000

Blue

KRF 70-8

70

EPC212705-5

2500

Black

KRF 70-8

70

EPC212705-6

2500

Blue

KRF 70-8

70

EPC212705-7

3000

Black

KRF 70-8

70

EPC212705-8

3000

Blue

KRF 70-8

70

File type

File name

File size

Download

Open

pdf
EPC212505_drawing_emcomp
63 KB
pdf
EPC212705_drawing_emcomp
63 KB
pdf
Cross reference AWG – mm2
702 KB
