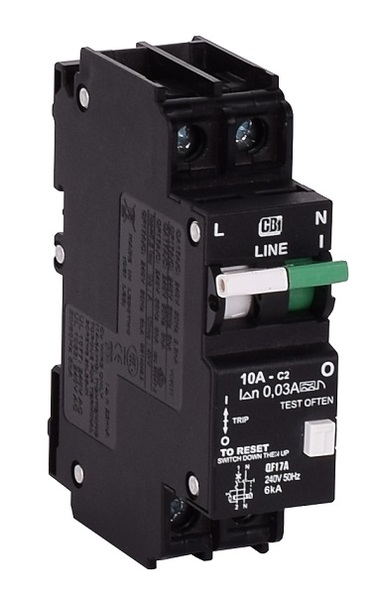

QF17A 5-63A RCBO with 30-300mA sensitivity

QF17A is a very compact RCBO for rated current between 5 and 63A. Standard sensitivity is 30mA but more options are available. The circuit breaker part in QF17A is designed with the same Hydraulic-Magnetic principle as the other CBI MCBs. This means that high or low ambient temperatures is no problem for reliable function. This is then combined with a very exact electronic sensing of earth leakage currents. All together making an excellent product for demanding applications.

Want to know more about this product, contact me

Nicklas Erixon

nicklas.erixon@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

QF17A is only 26 mm wide in 1pole + Neutral configuration. This, together with the fact that QF17A is one of few (maybe only) RCBOs on the market that combines approvals for VDE, UL and CCC in one product, has made QF17A to a popular choice for many OEM manufacturers with a global market.



QF17A can be delivered with a factory fitted 6,5 mm wide auxilliary contact for status indication.



For more information, see datasheet under "datasheets and files" as well as examples of part numbers under "product variants".



Part Number

Sensitivity

Rated current

Characteristics

QF17A05

30mA

5A

Medium

QF17A06

30mA

6A

Medium

QF17A100-01

30mA

10A

Medium

QF17A16-11

30mA

16A

Medium

QF17A20

30mA

20A

Medium

QF17A25

30mA

25A

Medium

QF17A30

30mA

30A

Medium

QF17A32

30mA

32A

Medium

QF17A40

30mA

40A

Medium

QF17A50

30mA

50A

Medium

QF17A60

30mA

60A

Medium

QF17A63

30mA

63A

Medium

File type

File name

File size

Download

Open

pdf
QF17-series_cbi
1298 KB
