EX Zone 1 & 2 Enclosed Switchgear

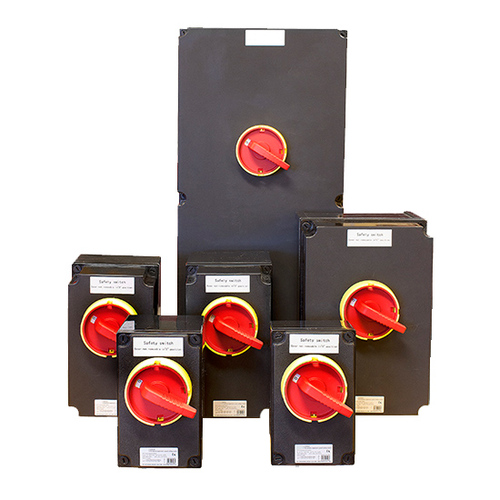

Craig & Derricott offer a range of explosion proof switchgear suitable in Zone 1, 2, 21 & 22 environments. Their product range has been developed to meet the technical requirements of today’s market and a great deal of the design consideration has been given to bringing a quality product to the market at a competitive price. The operating handles can be padlocked in the ‘Off’ position and all lids are mechanically interlocked with the isolating switch and are removable in the ‘On’ position only.

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

Zone 1 & 2  EXe – A range of 25A – 180A switch-disconnectors supplied in Exe enclosures manufactured from IP65 glass reinforced polyester to ensure the product will withstand being installed in the harshest of industrial environments.

Zone 1 & 2  EXd – A range of Switch-Disconnectors housed in IP65 heavy duty cast enclosures – ATEX certified for use in Cat II, Zones 1, 2, 21 & 22 environments. High quality heavy duty cast enclosures are used throughout the range. (Cast Iron 16A – 63A, Cast Aluminium 80A – 250A). The enclosures are supplied with large cable entries which can be fitted with approved reducers to suit individual cable requirements.



All load switching interiors are supplied as either 3P+N (switched neutral) or 6P and have AC23A ratings to BS EN 60947-3.

File name

File type

File size

Download

Explosion-Proof-Switchgear-C&D
pdf
1083 KB
