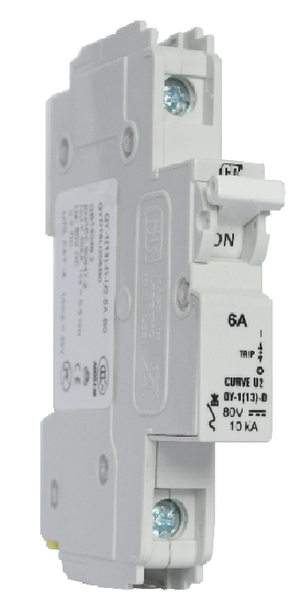

QY13mm DC MCB for up to 125VDC 0,1-200A

QY13 is a circuit breaker developed for being a DC product. To safely operate a DC voltage is different from operating an AC voltage. QY range is therefore a dedicated DC circuit breaker with correct marking and relevant DC approvals. Compared to traditional thermal magnetic MCBs we can highlight the following unique features: QY13 keep rated current regardless of ambient temperature. If you have a challenge with high ambient temperatures in your equipment you can rely on that QY13 always keep the rated current. I.e. no de-rating is needed. Like all our Hydraulic-Magnetic circuit breakers it is designed and certified to be loaded at 100% of rated current continuously. QY13 is built with 13 mm modular width instead of 18 mm as a traditional MCB. This means > 30% more distribution points in the same space. Purpose built to work with DC voltages.

Want to know more about this product, contact me

Nicklas Erixon

nicklas.erixon@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

These unique features has made the QY range to a very popular MCB for usage in for instance telecom applications.



QY range can be delivered up to 200A rated current as follows:

  • Up to 63A – 1 x 13 mm
  • 80-100A – 2 x 13 mm
  • 125-150A – 3 x 13 mm
  • 200A – 4 x13 mm

All paralleled units (>63A) are factory built and tested to the rated current before dispatch. This means that no paralleling of single pole units needs to be done in the field based on vague calculations and with the risk of uneven current split between the poles.



QY13 can be delivered with factory fitted accessories such as auxiliary and trip alarm contact as well as  trip coil that can be used to switch off the circuit breaker remotely. See our datasheet for further details.

Just as the rest of the Q-range, QY13 can be delivered in both grey version with 45 mm front escutcheon and black version with 57 mm front escutcheon.

QY is third party approved to IEC 60947-2 and UL listed as branch circuit protection according to UL489A. Breaking capacity is 10kA.

Part Number

Poles

Rated current

Characteristics

QYD18U201B0

1

1A

Medium

QYD18U202B0

1

2A

Medium

QYD18U203B0

1

3A

Medium

QYD18U204B0

1

4A

Medium

QYD18U206B0

1

6A

Medium

QYD18U210B0

1

10A

Medium

QYD18U216B0

1

16A

Medium

QYD18U220B0

1

20A

Medium

QYD18U225B0

1

25A

Medium

QYD18U232B0

1

32A

Medium

QYD18U240B0

1

40A

Medium

QYD18U250B0

1

50A

Medium

QYD18U260B0

1

60A

Medium

QYD18U263B0

1

63A

Medium

QYD28U2080B0Z

2 parallell

80A

Medium

QYD28U2100B0Z

2 parallell

100A

Medium

QYD38U2125B0Z

3 parallell

125A

Medium

QYD38U2150B0Z

3 parallell

150A

Medium

QYD49U2200B0Z

4 parallell

200A

Medium

QY18U201B0

1

1A

Medium

QY18U202B0

1

2A

Medium

QY18U203B0

1

3A

Medium

QY18U204B0

1

4A

Medium

QY18U206B0

1

6A

Medium

QY18U210B0

1

10A

Medium

QY18U216B0

1

16A

Medium

QY18U220B0

1

20A

Medium

QY18U225B0

1

25A

Medium

QY18U232B0

1

32A

Medium

QY18U240B0

1

40A

Medium

QY18U250B0

1

50A

Medium

QY18U260B0

1

60A

Medium

QY18U263B0

1

63A

Medium

QY28U2080B0Z

2 parallell

80A

Medium

QY28U2100B0Z

2 parallell

100A

Medium

QY38U2125B0Z

3 parallell

125A

Medium

QY38U2150B0Z

3 parallell

150A

Medium

QY49U2200

4 parallell

200A

Medium

File name

File type

File size

Download

QY Standard DC Range Emcomp
pdf
4 MB
QY Series CBI
pdf
2 MB
